Green & InfraRed Laser w/QR Mount - Black

VLGIRQRB

Barcode: 848754006769
Green & InfraRed Laser w/QR Mount - Black

Description

Description

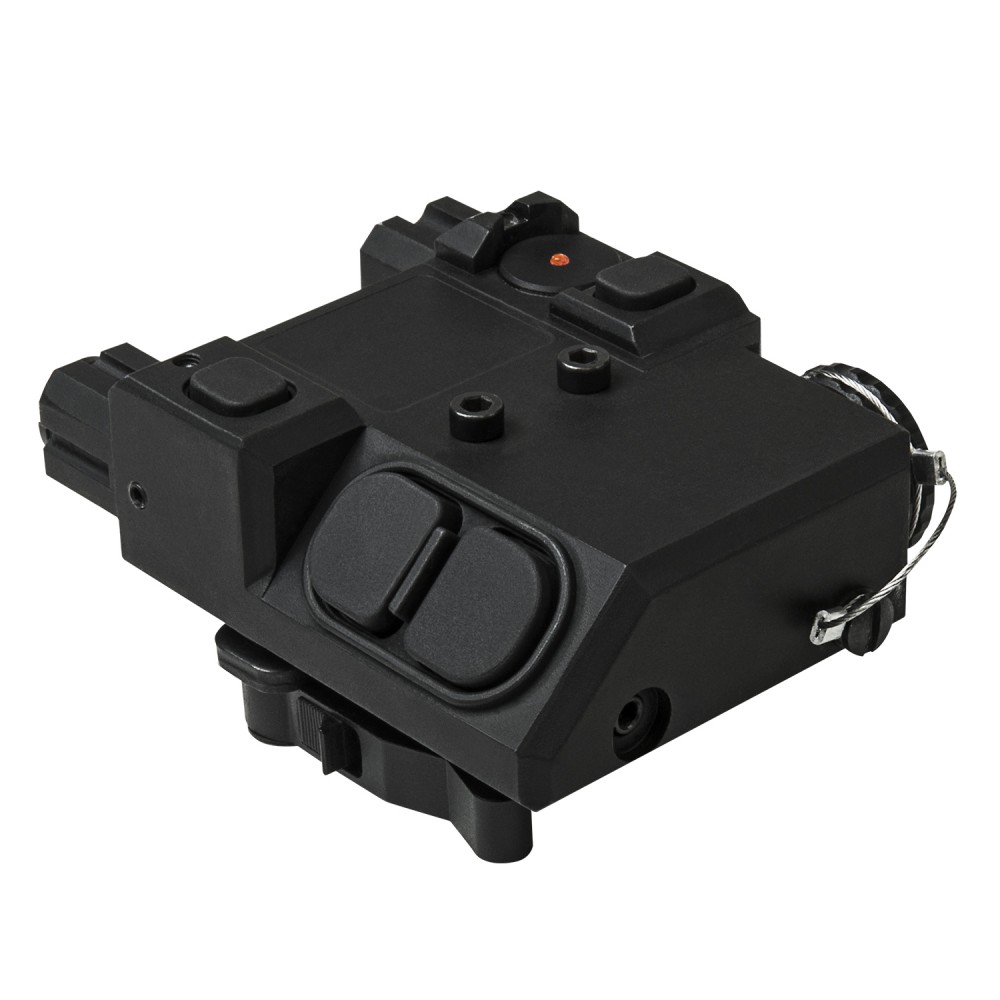

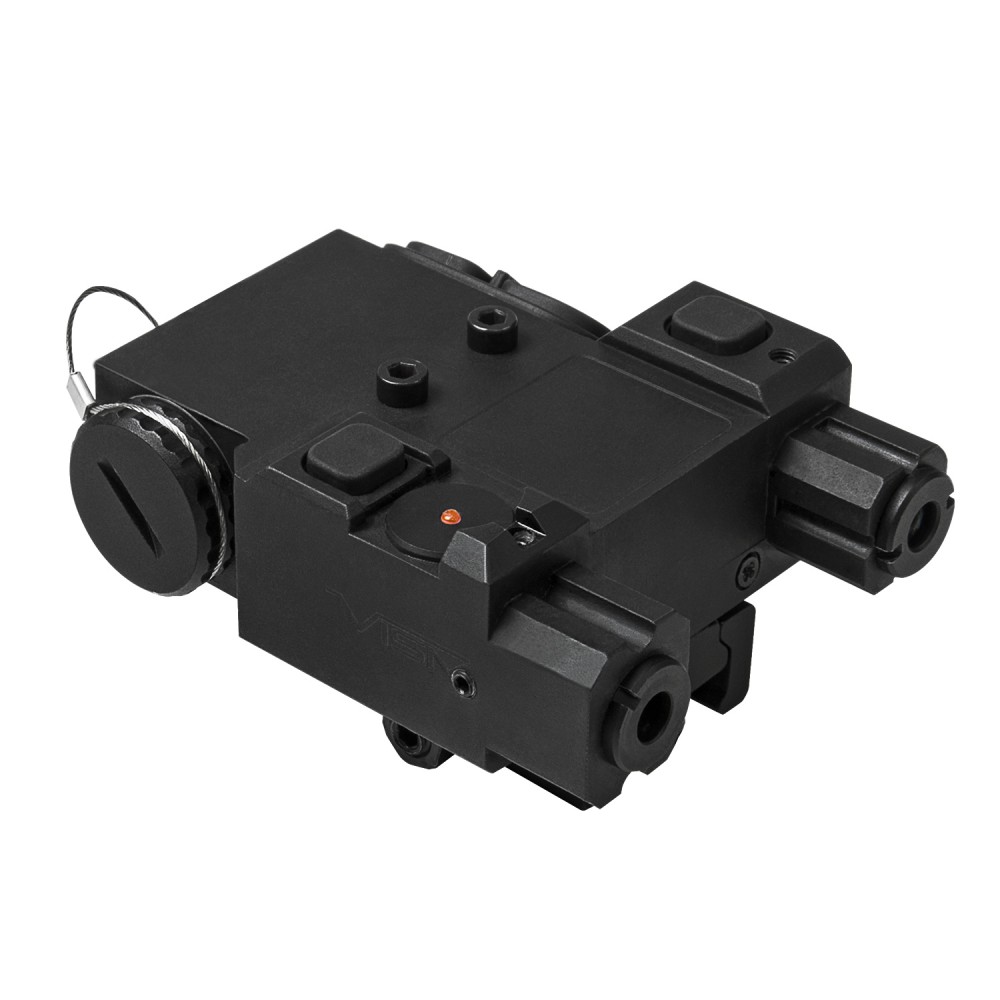

  • Quick Release Laser Designator with Green and IR (Infrared) Lasers. Designed to be mounted onto Picatinny rails for use as an aiming or pointing device. IR laser is not visible to the human eye, it requires special night vision devices and/or cameras that can see IR lights/lasers.
  • Fully adjustable Green Laser on the Left Pod that can be activated in three different ways: 45 degree angled Momentary Switch, top mounted Push button On/Off switch, or the included remote pressure switch. Class IIIa laser.
  • Fully adjustable IR Laser (not visible to the human eye) on the Right Pod that can be activated in three different ways: 45 degree angled Momentary Switch, top mounted Push button On/Off switch, or the included remote pressure switch. IR Laser is not visible to the human eye. You need Night Vision optics/goggles or video cameras that see in the IR spectrum.
  • Red LED light just above the IR laser to indicate when the IR laser is turned on.

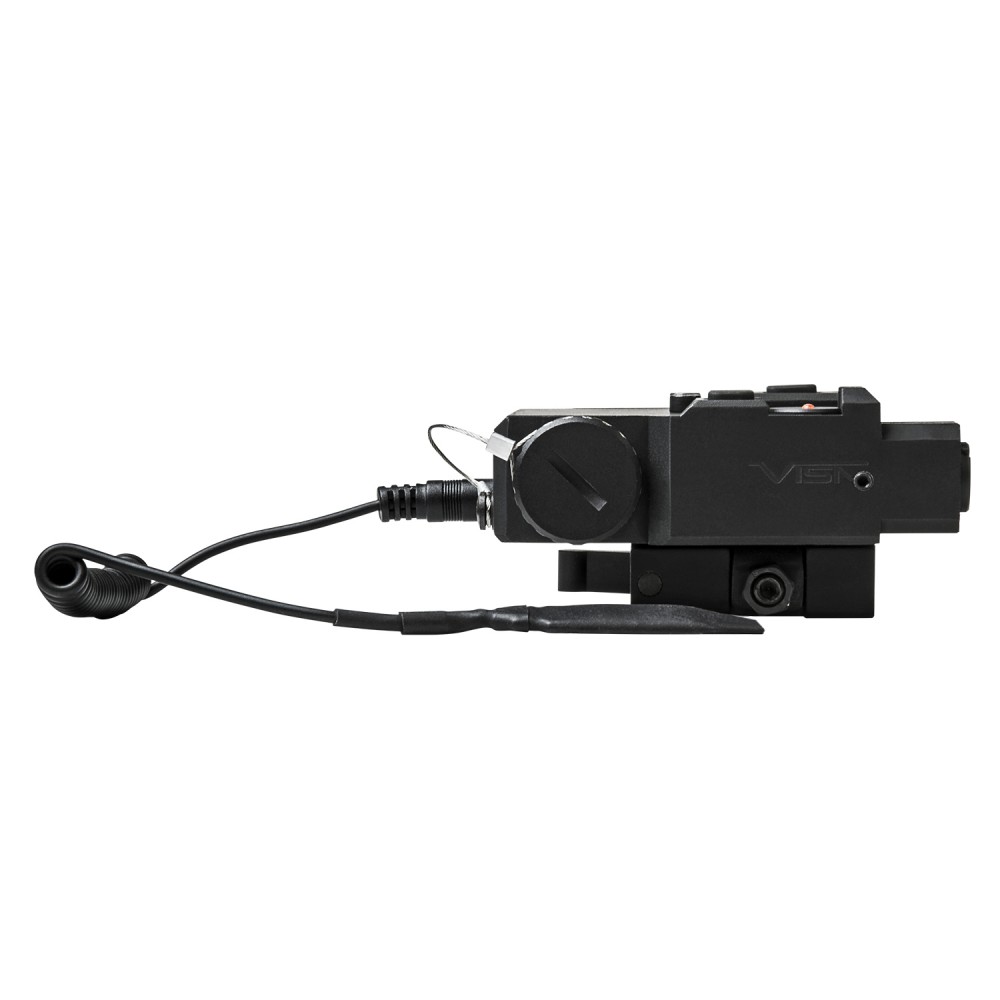

  • Includes a two position remote pressure switch. The 3.5 mini jack plugs into the rear jack port of the Designator. The Green Laser and the IR Laser can be individually activated from the remote pressure switch. Class I laser.

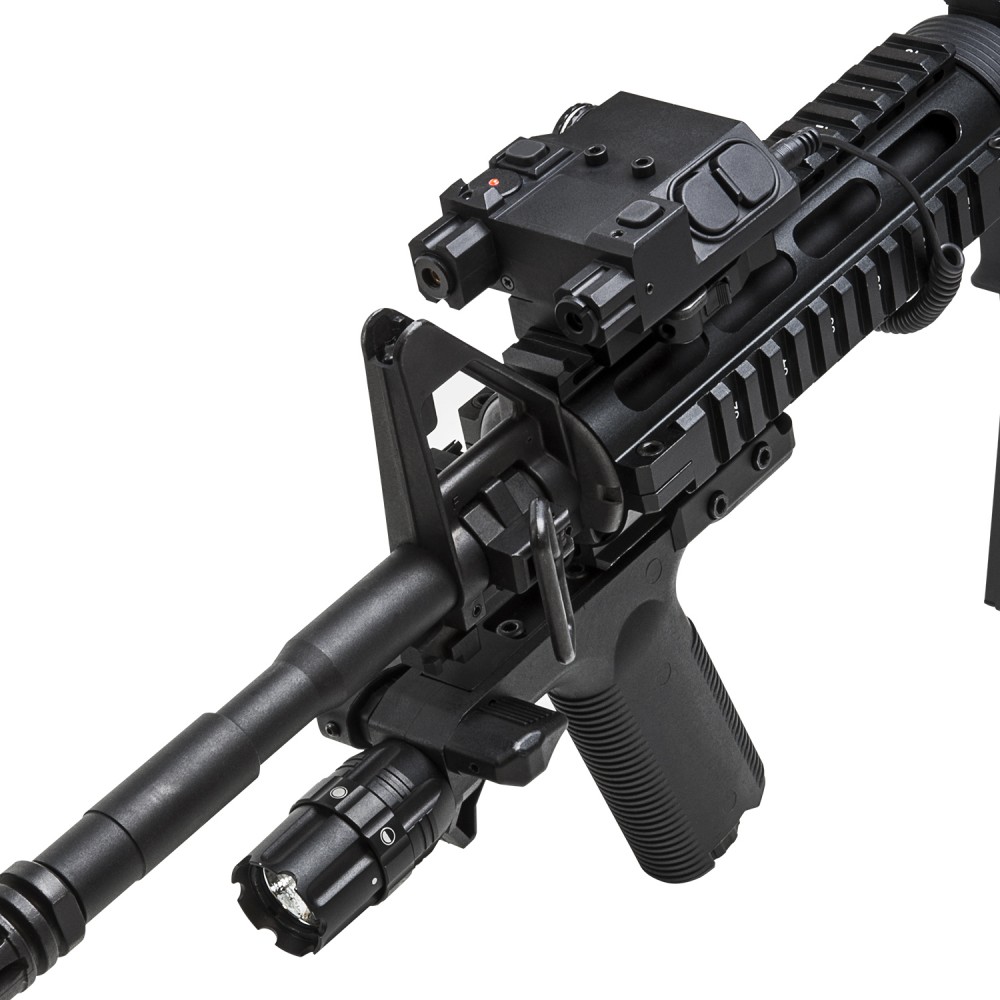

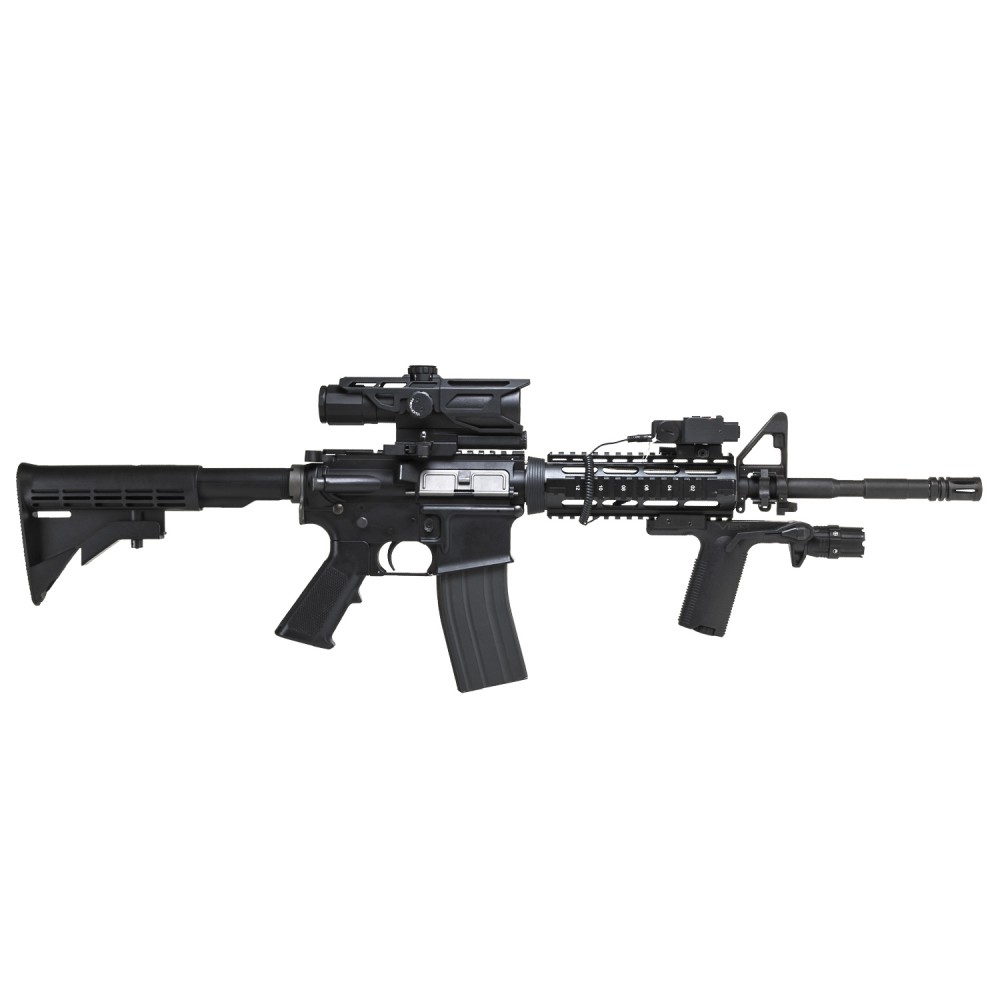

  • Locking Quick Release Mount fits: Weaver/ Picatinny/ MIL-STD 1913 type rails.
  • Powered by 3 volt lithium batteries (CR123A included) for longer battery life.
  • Includes: remote pressure switch, battery, and adjustment tools.
  • International orders will not include batteries.

Specs & Models

Specs & Models

*** GREEN LASER SPECS ***
Laser Class Class IIIa
Wavelength 532 nm
Maximum Output Power <5mW
Operating Voltage 3V DC
Line Width <0.1 nm
Beam Divergence <1mrad
Beam Diameter <1 mm
Operation Current <300mA
*** INFRARED LASER SPECS ***
Laser Class Class I
Wavelength 850 nm
Maximum Output Power <5mW
Operating Voltage 3V DC
Beam Divergence 0.085 Degree
Beam Diameter 20mmX22mm@15m
Operation Current <40mA
Green/ IR Laser Designator
Length 3.2”
Width 2.3”
Height 1.6”
Weight 6.6 oz.
Battery Type CR123A (3 volts Lithium)
